TDD-CP-SOK270DSF_TDDTOUCH

Overview

The TDD Self Ordering Kiosks include Slim/Sleek Curved, Slim, Easy, Android Self-checkout & Double Sided types, which are designed to adapt to changing consumer demands in retail environments. These modular and reliable kiosks support self-ordering, self-checkout, and visitor check-in, empowering customers to control their experience. Equipped with Receipt Printer, high-precision QR Code reader, ID Camera and optional functions like RFID, Fingerprint scanning, Metal keypads, Bill & Coin Recycler (Custom) and TDD's innovative technology, it is the perfect solution for seamlessly integrating modern businesses to these user-friendly kiosks to enhance customer satisfaction and operational efficiency.

Features

● Compact design for space-restricted environments

● Robust construction ensures continuous use in unattended areas.

● Modular design minimizes total cost of ownership while maximizing operational efficiency.

Specifications

System (Mini-ITX Motherboard: 6.7’’=170 x170mm; Default Configuration: Intel® I5 12th, 8G RAM, 256G SSD)

Processor

Android: RK3188/RK3288/RK3566/RK3568 Quad-core Cortex-A9/A17/A55 1.6/1.8/ 2.0GHz

Windows: Intel® J1900 / J4125 Quad Core 2.0 / 2.7GHz / Intel® Core™ i3 / i5 / i7 / i9 4-13^thG

Memory(RAM)

Android: 1 / 2GB(std) / 4 / 8 / 16GB; Windows: DDR3/4 2 / 4(std) / 8 / 16 / 32 / 64GB

Storage

Android: 4/8/16(std)/32/64GB eMMC Flash; Windows: 32/64(std)/128/256/512GB SSD/HDD

Panel

Size / Active Area (mm)	27"(16:9), 68.58cm, Active matrix TFT LCD (LED) / 597.9 mm x 336.3mm
Resolution / Contrast	1920 x 1080 / 1000:1
Viewing Angle	Horizontal: 89° or 178° total / Vertical: 89° or 178° total
Color Depth/Brightness	16.7 million / 300 nits
Response Time / Freq	14 (Typ.)(Tr+Td) ms / Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz

Touch

Touch Technology / OS	PCAP (Projected Capacitive) - 10 Touch Capacity / Windows / Android / Linux / Mac
Surface Treatment	Water, Dust & Vandal proof; Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial

I / O Ports

Android	USB x2 / HDMI x1 / LAN x1 / WIFI x1 / DC x1 / TF-CARD x1 / Audio x1
Windows	USB x4 / COM x2 / VGA x1 / HDMI x1 / LAN x1 / WIFI x1 / DC x1 / Audio x1 / Mic x1

Power Supply / Consumption: 100-240 VAC / 12VDC 5A +/- 5%; 25W typical, 1.2W sleep, 0.5W off

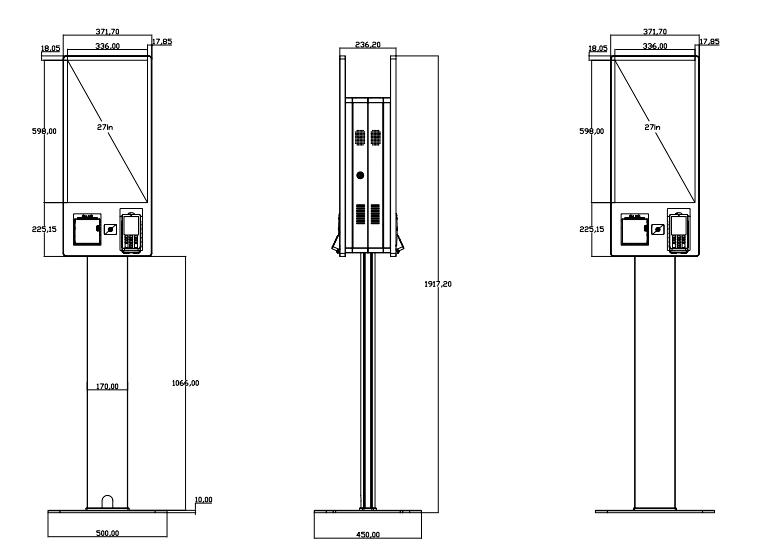

Mechanical	Product Dimensions (HxWxD): 1917.2x500x450mm/Weight(Unpacked/Packed): 21.7/ N/A kg Box Dimensions: N/A mm / VESA Mounting: N/A
Environmental	Operating / Storage Temperature: -10°C to 50°C / -20°C to 60°C
Accessories	Power adapter / cable, free standing / wall mount mounting kits w/screws (opt.)
Others	MTBF / Warranty / Enclosure Color / Ready for Use: 50,000 hours / 1-year / black\|white / 24/7 Speakers: Internal, 4Ω / 5W x 2
Optional Peripherals (Default: Marked by Yellow)	Receipt Printer: thermal, 150mm/s, 80mm printing width, auto cut, paper end detection, USB QR / Barcode Scanner: 1D / 2D, CMOS with 640 x 480 (opt. for 752 x 480) pixel, USB POS Holer: Yes ID Camera: 2 / 5MP , monocular / binocular cameras, USB RFID: Custom, 13.56M Hz Mifare ISO14443A read only, USB Fingerprint Scanner: Custom, USB Metal Keypad: Custom, 16 keys, USB 4G: Mini-PCIe, GPS: TTL / USB or 4G & GPS: Mini-PCIe
