TDD-IPC-AS43-L2-A78AE_TDDTOUCH

Overview

The TDD-IPC-AS43 is a compact industrial AI edge computer based on the NVIDIA Jetson Orin Nano 8GB platform, delivering a powerful edge AI computing solution when your application requires AI processing to be integrated into industrial equipment. It integrates a 6-core Arm® Cortex® A78AE CPU, NVIDIA Ampere GPU with 32 Tensor Cores, 8GB LPDDR5 memory, and up to 67 TOPS AI performance. With multiple I/O interfaces, full aluminum alloy enclosure, fan cooling system, DC 9–36V wide voltage input, and -20°C to 60°C operating temperature, it provides high durability and versatility for industrial automation, AI video analytics, machine vision, smart security, robotics, AGV/AMR, and edge AI applications.

Features

● NVIDIA Jetson Orin Nano 8GB platform

● 6-core Arm® Cortex® A78AE 64-bit CPU

● 67 TOPS AI performance

● Supports 2 xUSB 3.0, 2 xUSB 2.0, 2 xRS232 / RS485, 1 xCAN, 6 xDI, 6 xDO

● Supports 1*HDMI, 2 xLAN

● Wide range DC 9~36V Input (optional)

● Aluminum case with 1x external top fan

● Wide operating temperature: -20°C to 60°C

Specifications

Case Color	Black (color can be customized)
Material	Full Aluminum Alloy
CPU	6-core Arm® Cortex® A78AE v8.2 64-bit CPU
Chipset / GPU	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
RAM	2xSODIMM DDR4 2133/2400MHz Memory slots,up to 64GB
AI Performance	67 TOPS
RAM	8GB 128-bit LPDDR5
Storage	512GB NVMe SSD pre-installed, via 1 × M.2 Key-M 2280 PCIe x4 slot
Audio	1 xLine-out, 1 xMic
Display Interface	1 xHDMI 1.4, supports 4K/30fps and 1080P/30fps
Display	Integrated Intel HD Graphic card, support 1VGA, 1HD, 1*LVDS display input
I/O	USB	2 xUSB2.0, 2 xUSB3.0
	COM	2 xRS232 / RS485
	Line In/Out	1
	LAN	2 xLAN
	MIC / Audio	1 / 1
	CAN / DI / DO	1 / 6 / 6
Wireless	1 xWiFi + Bluetooth
Network Card	2 xRJ45 Gigabit Ethernet
Expansion	1 xMini-PCIE, support 4G module
Power	DC 9-36v +/- 5%, with 1 x2P(P=5.08mm) phoenix connector
Operating System	Ubuntu 20.04
Working Temperature	-20°C - 60°C
Working Humidity	0% - 95% relative humidity, non-condensing
Mechanical	Product Dimensions: 141.4x126x44mm / Weight (Unpacked/Packed): 0.8/1 kg(1pcs) Box Dimensions: 47x47.5x26mm(10pcs)/VESA Mounting bracket, DIN rail(35mm)
Others	Warranty/Enclosure Color: 1 year (optional for 2) / silver \| black, Ready for Use: 24/7

Default Interface

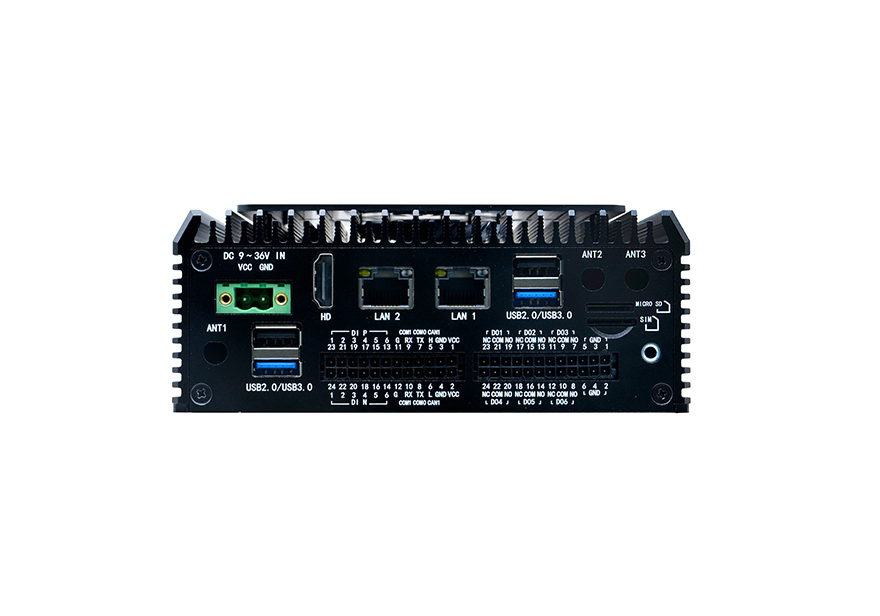

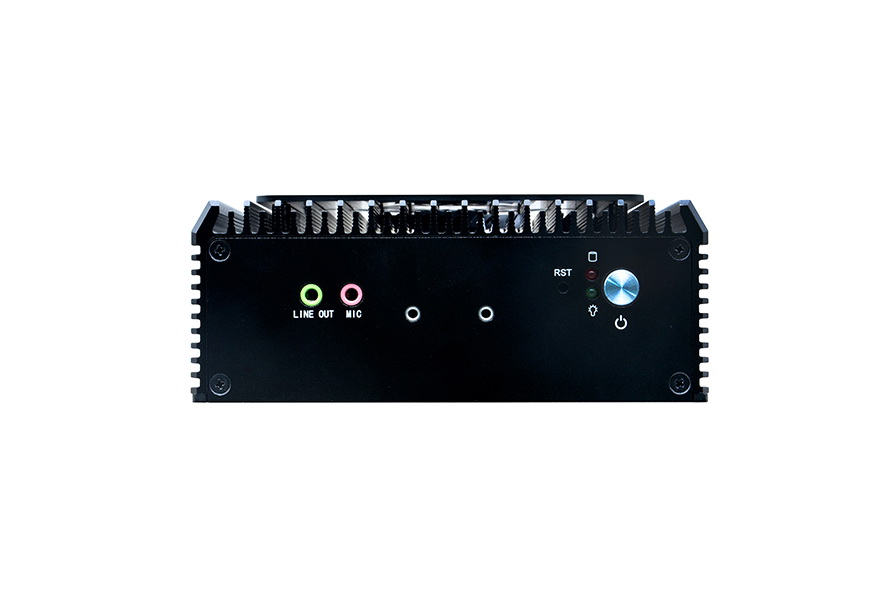

USB 3.0 x2 / USB 2.0 x2 / LAN x2 / HDMI x1 / RS232/485 x2 / CAN x1 / DI x6 / DO x6 / TF x1 / SIM x1 / Line-out x1 / Mic x 1 / WiFi + Bluetooth x1 / DC 9-36V x1

Download

1-1-C-TDD-IPC-AS43-L2-A78AE Spec-2608.pdf
