TDD-OFTD-320H

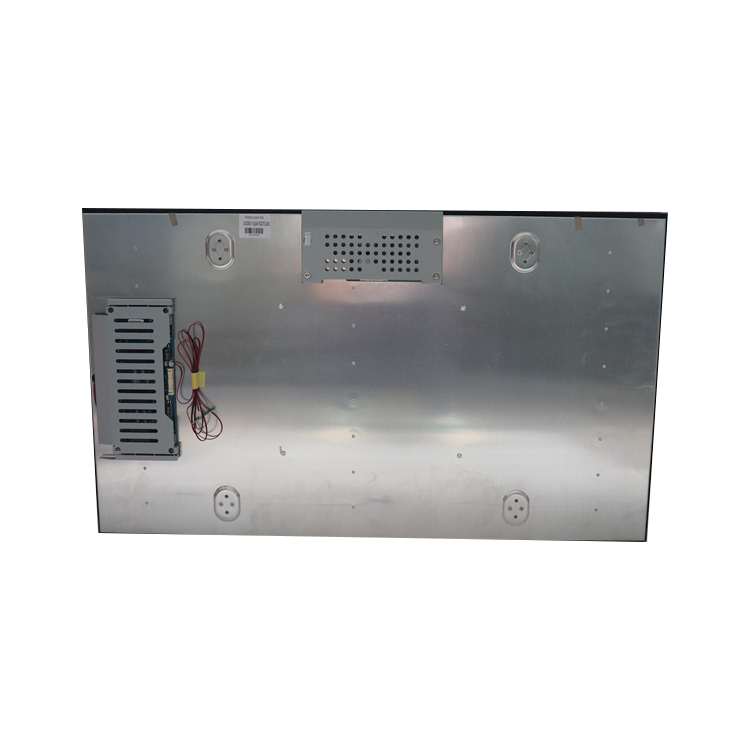

32'' Open Frame High Brightness TFT Displays

    ● 1000 up to 5000 nits, Sunlight Readable, Wide Operating Temperature

    ● 24/7 IPS Panel with Industrial Grade LED Backlights (analog / PWM Dimming Control)

    ● Available in Kits Form, Open Frame, Waterproof Optical Bonding Tempered Glass and Fully Custom Design

Contact us

+86 755 8672 4815

sales@tddtouch.com

+8615002067862

Get a Quote
    Overview

    Designed especially for outdoor application, the TDD High Brightness TFT Displays include 10.1 to 86 inch, Open Frame, Optical Bonding, Solar Powered, Bar Type, Full Array Local Dimming, Ultra & Custom High Brightness Displays types, ensuring excellent visibility in direct sunlight. Custom backlight solution & advanced brightness sensor allow for automatic adjustments based on ambient light, optimizing readability and energy efficiency, ensuring the clear visibility at all times and extending the lifespan of the displays – making it the ideal solution for the bright environments.

    Features

      ● 1000 up to 5000 nits, Sunlight Readable, Wide Operating Temperature

      ● 24/7 IPS Panel with Industrial Grade LED Backlights (analog / PWM Dimming Control)

      ● Available in Kits Form, Open Frame, Waterproof Optical Bonding Tempered Glass and Fully Custom Design

    Specifications

    Panel

    LCD Type

    TFT / IPS / Transmissive / Normally Black

    Diagonal Size

    32"(16:9), 81.28cm,   Active matrix TFT LCD (WLED)

    Active Area (mm)

    698.4   mm x 392.85 mm

    Pixel Pitch (H x V)

    0.36375 x 0.36375   mm

    Resolution

    1920 x 1080

    Viewing Angle

    Horizontal: 89° or   178° total / Vertical: 89° or 178° (Typ.)(CR≥10)

    Number of Colors

    16.7 million

    Brightness (typical)

    1500 nits

    Response Time-total

    8 (Typ.)(Tr+Td)   ms

    Contrast Ratio

    1200:1

    Input Video Frequency

    Horizontal: 30 -   60 KHz / Vertical: 50 - 75 Hz

    Interface

    LVDS 51 pins

    Supply Voltage

    12V (Typ.)

    PCAP Touch Panel   None

    LCD Controller (A/D) Board

    Video Interfaces

    Default: 1*VGA, 1*HDMI for 1K, 2*HDMI for 4K; Optional: DVI x1, Display Port x1

    Connectors & Controls

    Audio Mini jack   x1 / DC x1; 5 OSD buttons(optional)

    Power                           Supply / Consumption: 100-240 VAC / 24VDC +/- 5%; 96W typical, 1.2W sleep, 0.5W off

    Mechanical

    Outline Dimensions(WxHxD): 731x430.45x48.2mm/Weight (Unpacked/Packed): 4/N/A kg

    Box Dimensions: N/A / Mounting: Open Frame Form

    Environmental

    Operating / Storage Temperature: -10°C to 50°C / -20°C to 60°C

    Accessories

    LCD controller &   constant current boards, power supply, ambient light sensor   & panel cable

    Others

    MTBF/Warranty/Metal   Case/Ready for Use: 50,000 hours demonstrated /1-year / silver / 24/7
