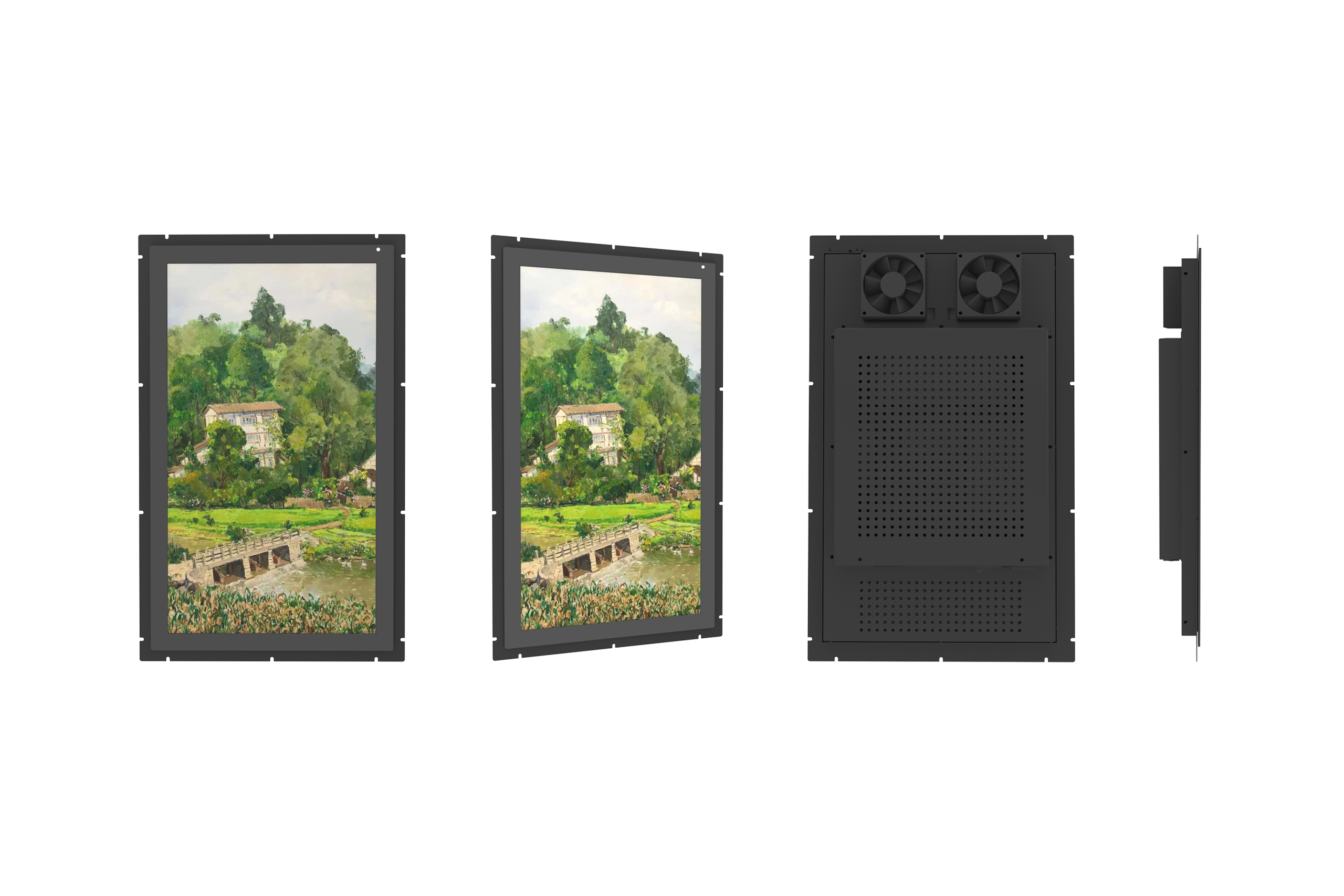

18.5’’ Outdoor Open Frame Displays

    ● 5 mm ultra white tempered glass with anti-mist Optical Bonding (Wacker gel), optional with PCAP touch & AG

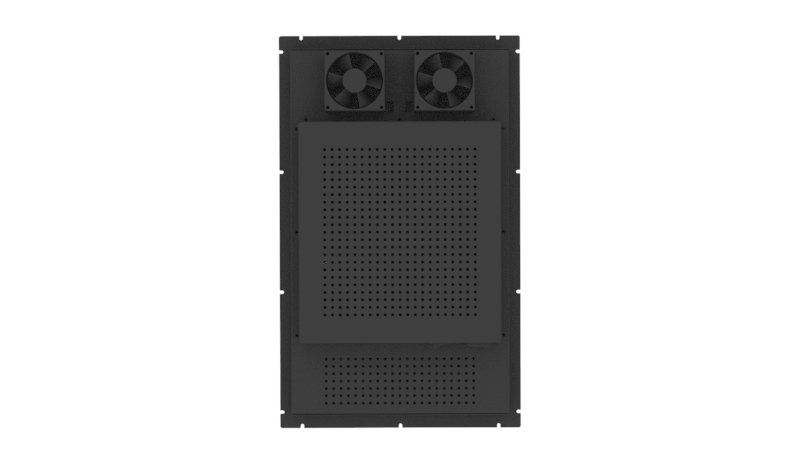

    ● Embedded design with wide temperature TFT panel rated up to 105 °C, auto-dimmer, low noise smart fans

    ● IP65 (front) for water and Dust Protection, with mounting holes on all four sides for flexible mounting

Contact us

+86 755 8672 4815

sales@tddtouch.com

+8615002067862

Get a Quote
    Overview
    The TDD Touch Monitors include Standard, Industrial (Open Frame Bezel-free | Rear Mount, Panel Mount, Closed Frame), Outdoor, Waterproof, Stainless Steel, Marine, Curved, Desktop POS, Commercial Displays, Medical and Custom types, delivers an industrial, reliable and cost-effective solution with outstanding image clarity & accurate touch response for OEMs & systems integrators. 7-98’’ sizes with rugged bezel, flat structure, high durability and versatility for Kiosks applications from Self-service, Automated Parking, Industrial Automation, Outdoor Control, Healthcare to Gaming.
    Features

      ● 5 mm ultra white tempered glass with anti-mist Optical Bonding (Wacker gel), optional with PCAP touch & AG

      ● Embedded design with wide temperature TFT panel rated up to 105 °C, auto-dimmer, low noise smart fans

      ● IP65 (front) for water and Dust Protection, with mounting holes on all four sides for flexible mounting

    Specifications

    Panel

    Diagonal Size

    18.5"(16:9), 46.99cm, Active matrix TFT LCD (LED)

    Active Area (mm)

    409.8 mm x 230.4 mm

    Resolution

    1366 x 768

    Viewing Angle

    Horizontal: 89° or 178° total / Vertical: 89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    1000 nits

    Response Time-total

    14 (Typ.)(G to G) ms

    Contrast Ratio

    1000:1

    Input Video Frequency

    Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz

    Touch (Optional)

    Touch Technology

    PCAP (Projected Capacitive) - 10 Touch Capacity (Optional: Waterproof Firmware)

    Surface Treatment

    Water, Dust & Vandal proof; Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial

    Supported OS

    Windows / Android / Linux / Mac

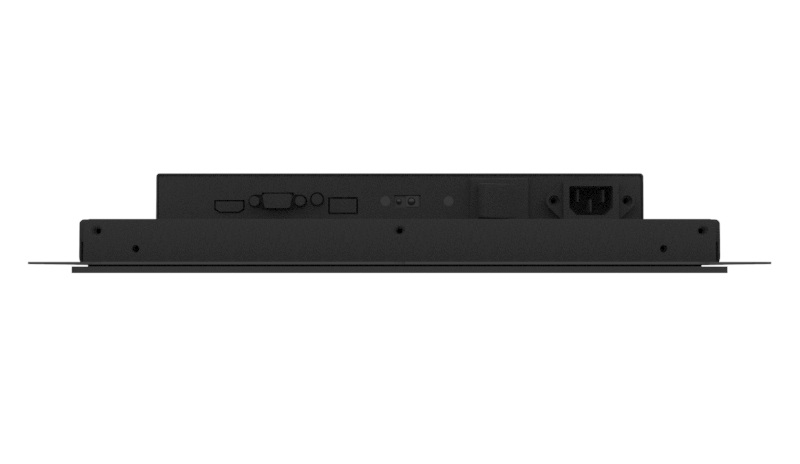

    Interfaces / Connectors / Controls

    Video Interfaces

    HDMI x1 / VGA x1 (opt.) / Display Port x1 (opt.) / USB x1 for Touch; HDCP: Yes

    Connectors & Controls

    Audio Mini jack x1 / DC x1

    Power                         Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 32W typical, 1.5W sleep, 0.5W off

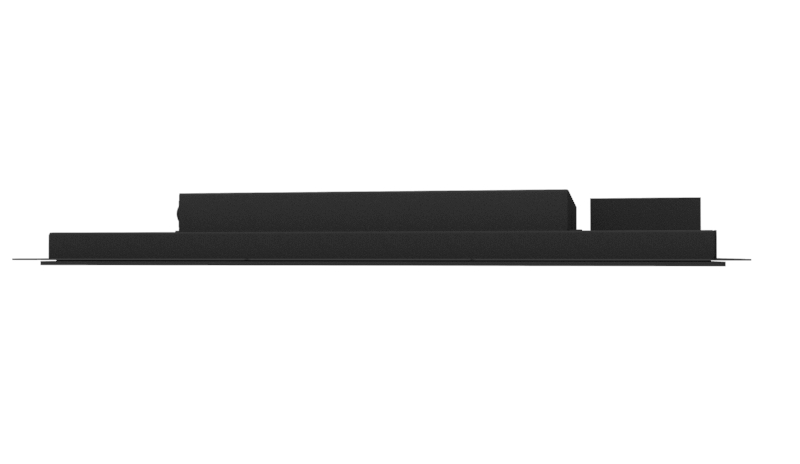

    Mechanical

    (Subject to change)

    Product Dimensions: 458 x 279 x 54mm / Weight (Unpacked / Packed): 6.7 / 8.5kg

    Box Dimensions: 534 x 174 x 352mm / Mounting: with mounting holes for flush mounting

    Environmental

    Operating / Storage Temperature: -20°C to 70°C / -30°C to 80°C

    Accessories

    Power adapter / cable, HDMI / VGA / Touch USB cable

    Others

    MTBF / Warranty / Enclosure Color: 50,000 hours demonstrated / 1-year / black

    Ready for Use: 24/7, panel surface treatment: Haze 3%
