System

Processor

Android: RK3188/RK3288/RK3566/RK3568 Quad-core Cortex-A9/A17/A55 1.6/1.8/ 2.0GHz

Windows: Intel® J1900 / J4125 Quad Core 2.0 / 2.7GHz / Intel® Core™ i3 /i5/i7 / i9 4-13thG

Memory(RAM)

Android: 1 / 2GB(std) / 4 / 8 / 16GB;

Windows: DDR3/4 2/ 4(std) / 8 / 16 / 32 / 64GB

Storage

Android: 4/8/16(std)/32/64GB eMMC Flash;

Windows: 32/64(std)/128/256/512GB SSD/HDD

Panel

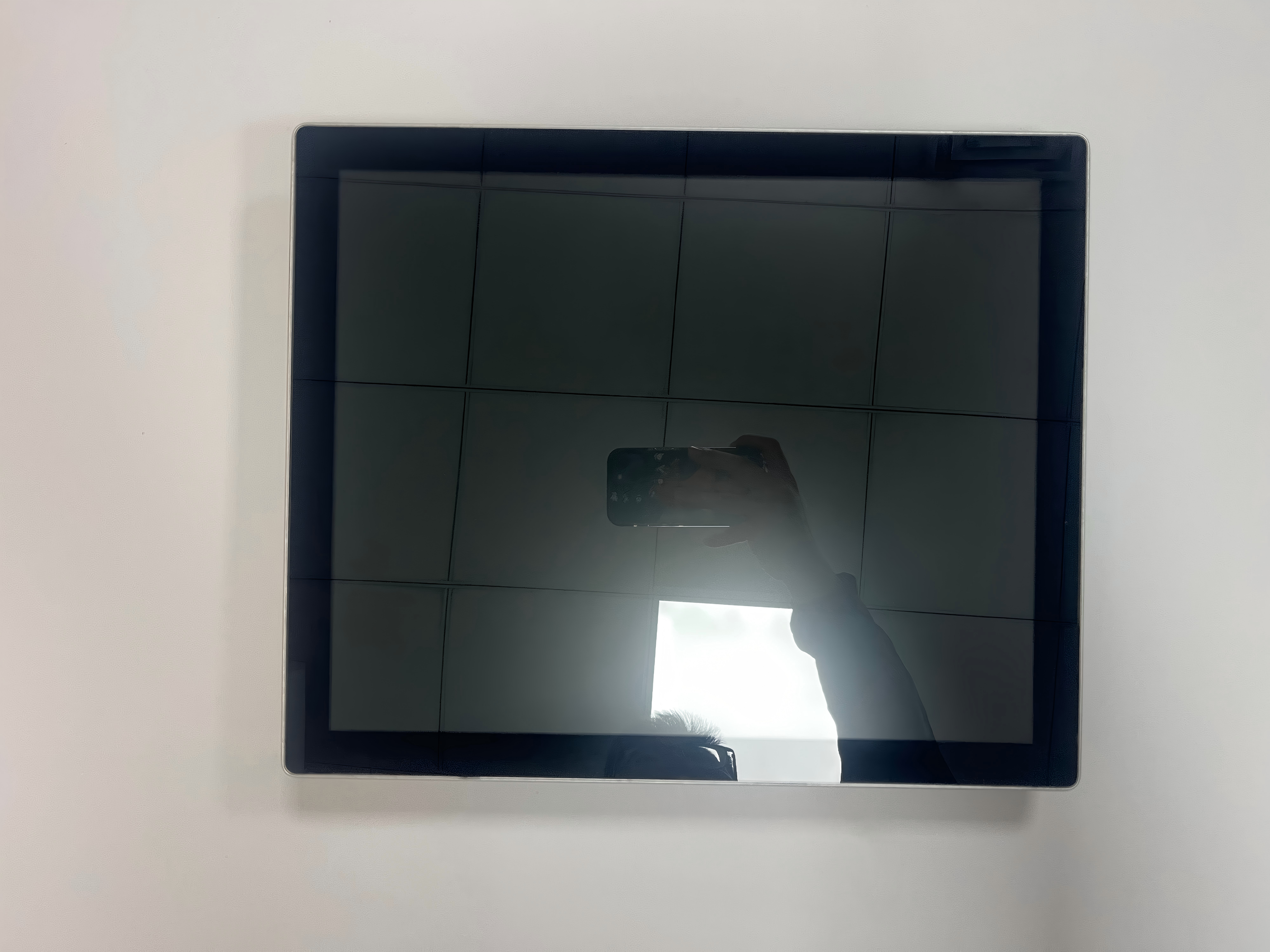

Size / Active Area (mm) :17"(4:3), 43cm, Active matrix TFT LCD (LED) / 338.92 mm x 271.34mm

Resolution / Contrast :1280 x 1024 / 1000:1

Viewing Angle Horizontal: 85°/ 89° or 170°/ 178° total / Vertical: 80°/ 89°or 160°/ 178°total

Color Depth/Brightness: 16.7 million / 250 nits

Response Time / Freq :30 (Typ.)(Tr/Td) ms

Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz

Touch

Touch Technology / OS PCAP (Projected Capacitive) : 10 Touch Capacity / Windows / Android / Linux / Mac Surface Treatment Water, Dust & Vandal proof;

Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial

I / O Ports

Android Default USB2.0x2, USB3.0x2=extended to USB3.0 x4/COMx2/HDMIx1/LANx1/WIFIx1/DC  x1/TF-CARDx1/Audio x1

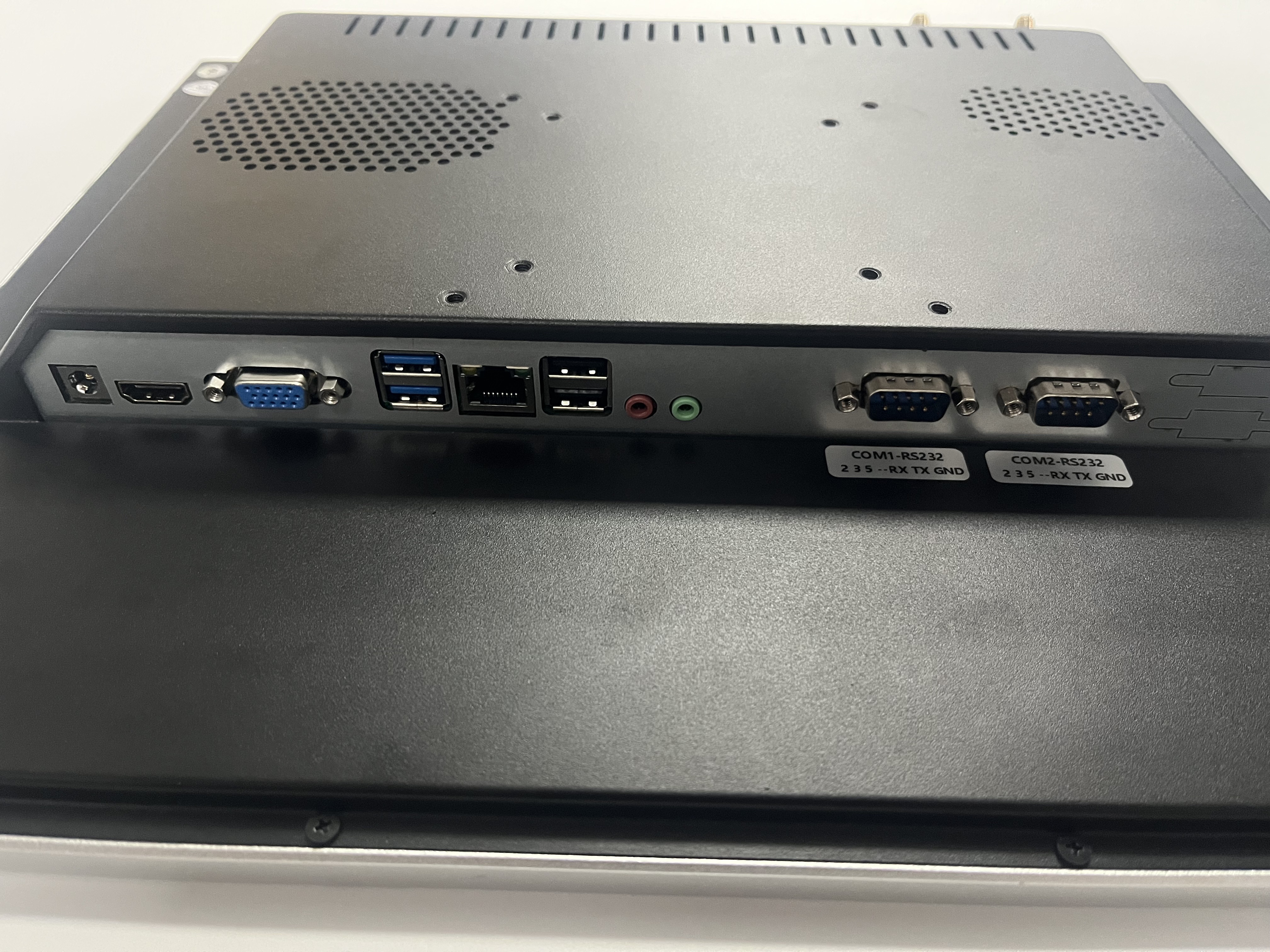

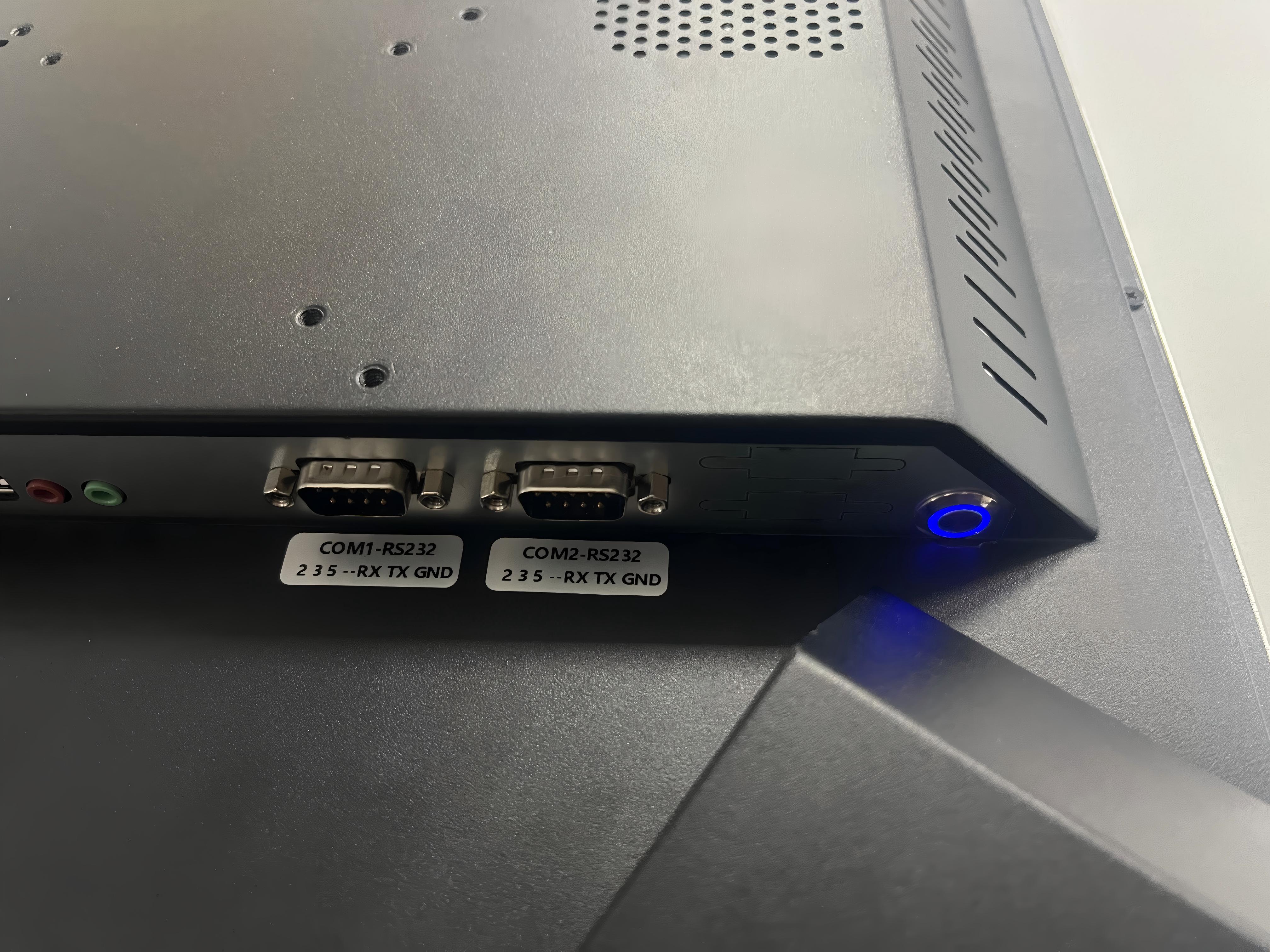

Windows I3-12th / I5-12th CPU: Default USB2.0x2, USB3.0x2=extended to USB3.0 x4/ COM x2 / VGA  x1 / HDMI x1 / LAN x1 / WIFI x1 / DC x1 / Audio x1 / Mic x1 N97 or N100 CPU: USB2.0x4, USB3.0x2 / COM x2 / VGA x1 / HDMI x1 / LAN x1 / WIFI x1 /  DC x1 / Audio x1 / Mic x1

Power

Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 20W typical, 1.5W sleep, 0.5W off

Mechanical

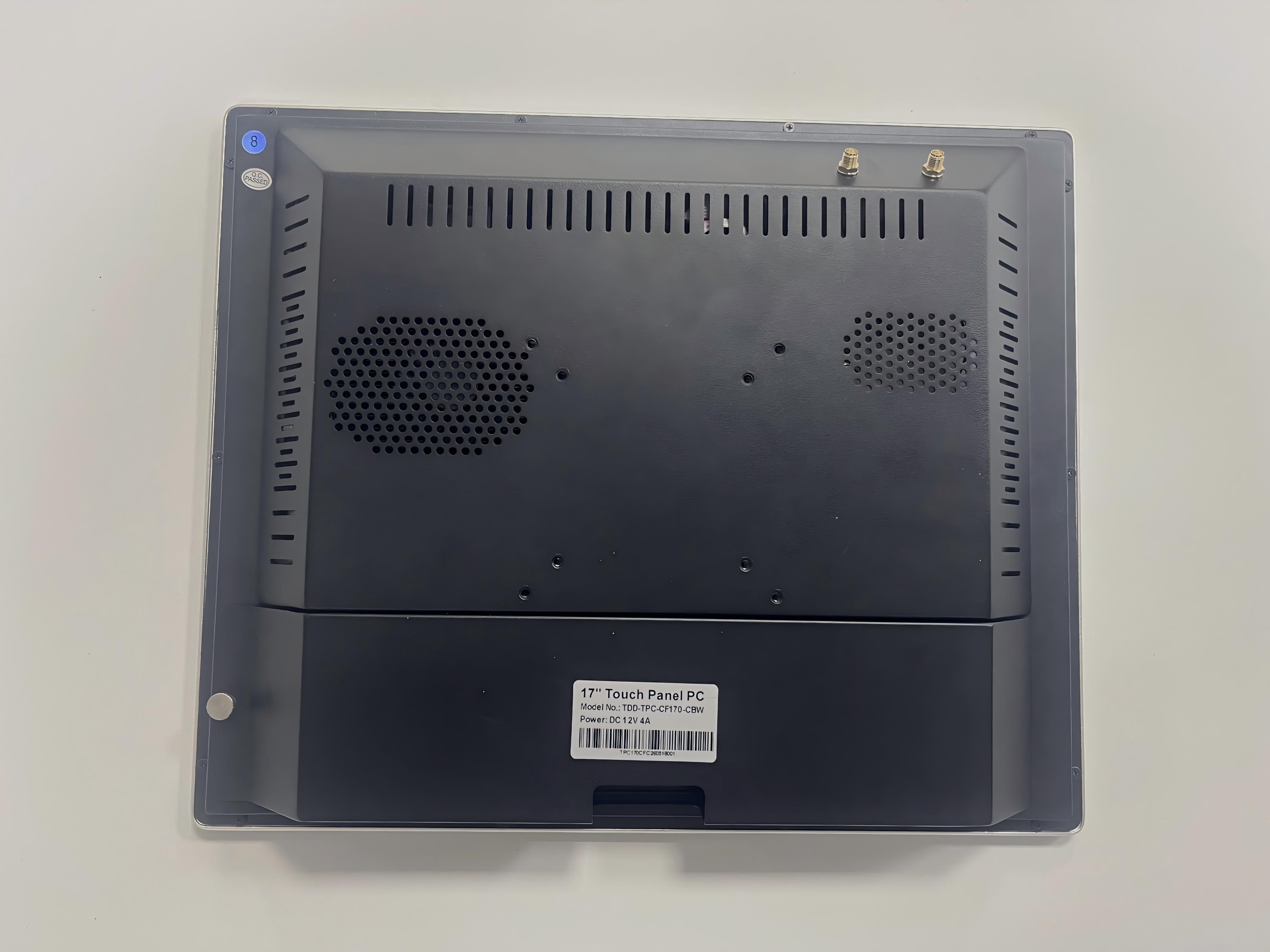

Product Dimensions: 384.06x316.16x49.7mm/ Weight(Unpacked / Packed): 4.5 / 5.5 kg Box Dimensions: 530 x 431 x 141mm / VESA Mounting: 75 x 75 / 100 x 100mm

Environmental

Operating / Storage Temperature: -10°C to 50°C / -20°C to 60°C

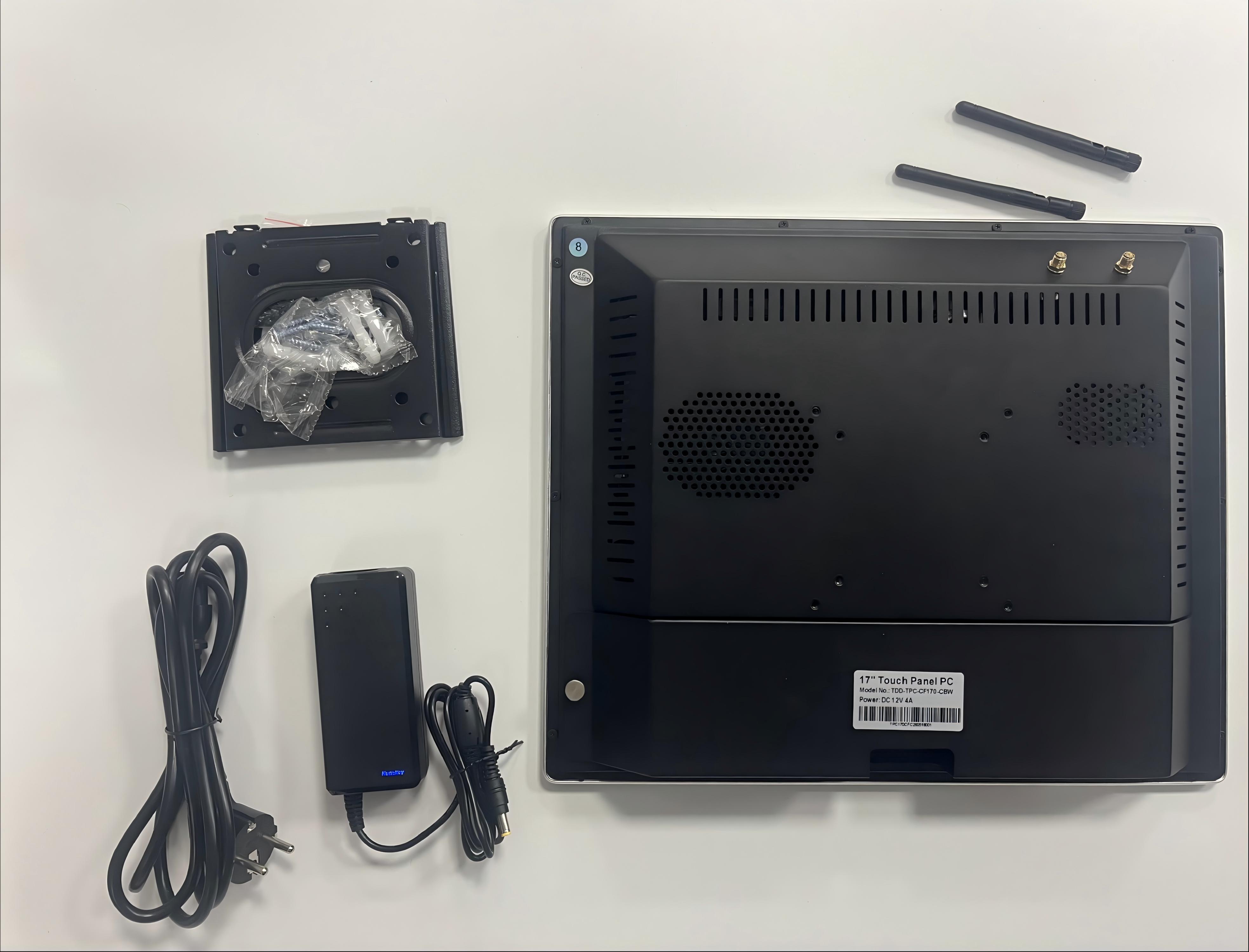

Accessories

Power adapter / cable

Others

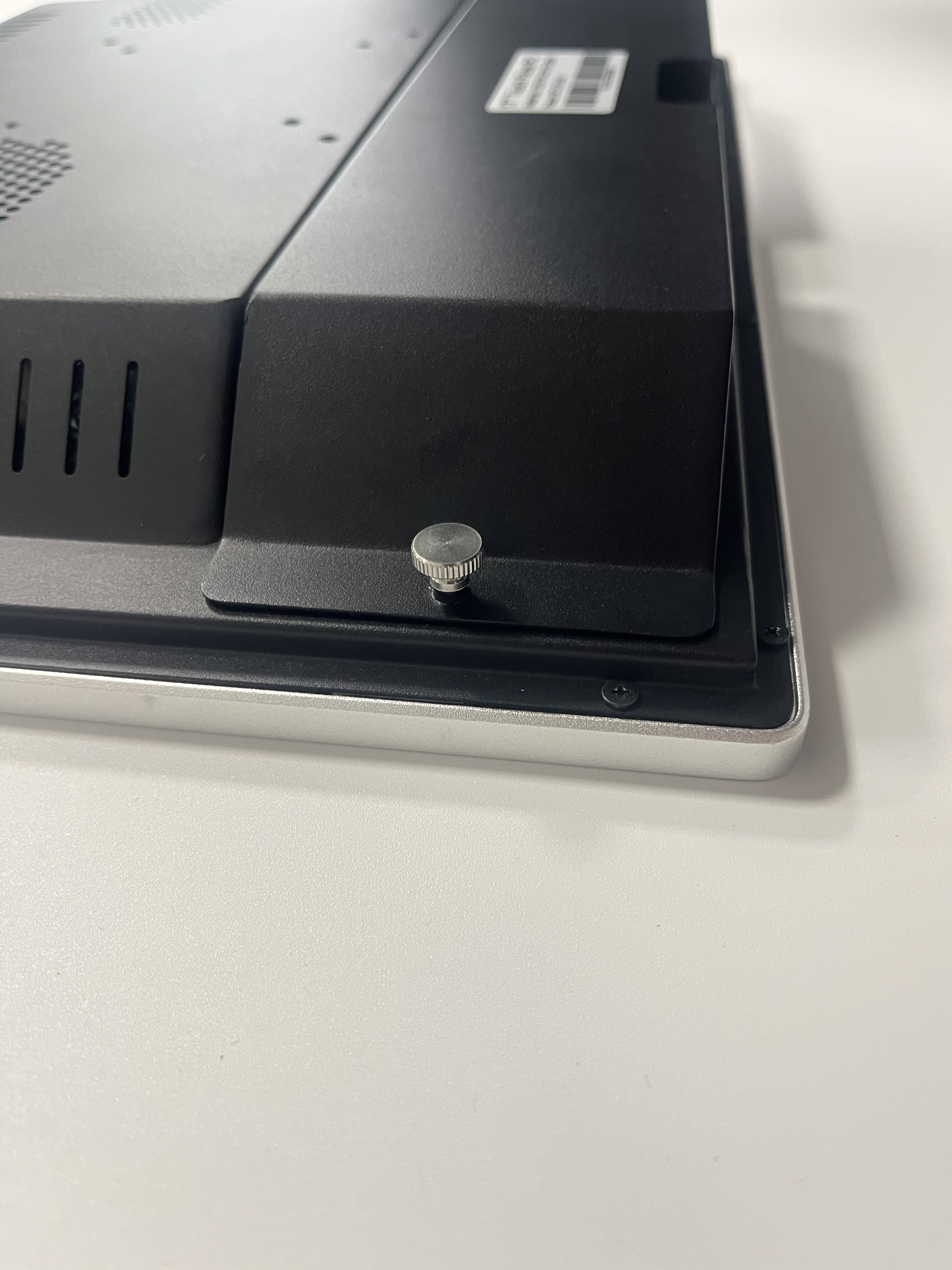

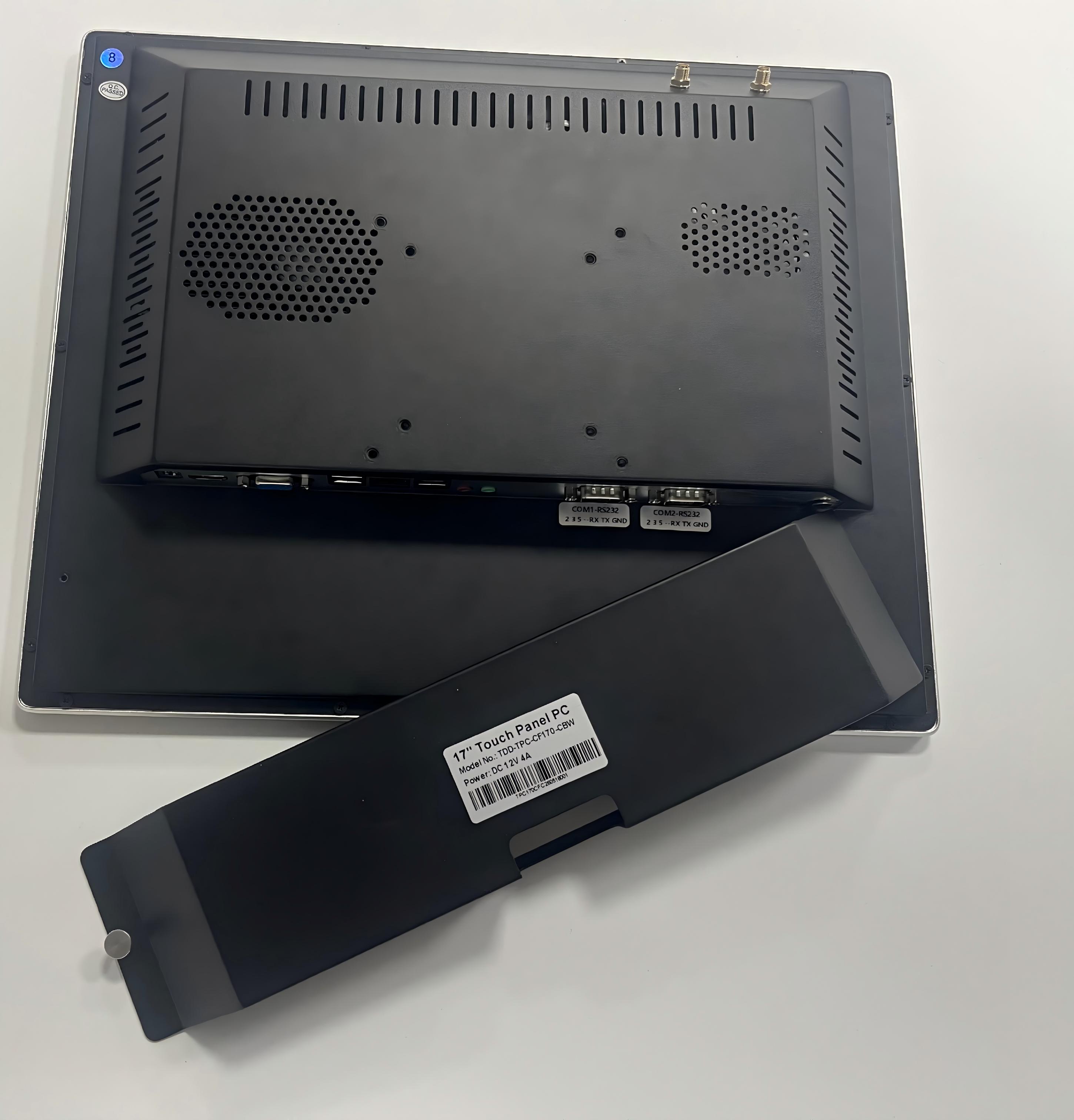

MTBF / Warranty / Enclosure Color: 50,000 hours demonstrated / 1-year / matte black Ready for Use: 24/7, A = Aluminum Back, S = Steel Back in above “Mechanical” Design & Structure: Matte black housing; VESA 100×100 / 75×75 positioned slightly lower  than center;  Bottom-side I/O: power button must not be on the side and should be located on the port  panel area, hidden when the panel is closed Cable & Port Protection: I/O ports with protective cover to prevent accidental unplugging;  cable cover reference design acceptable; screws non-detachable; secure cable exit

* TDD (www.tddtouch.com, sales@tddtouch.com) reserves the right to change specifications without prior notice.
